Insulated Low Profile 18um Reverse Treated Copper Foil For Wireless Charging

Name: Insulated Low Profile 18um Reverse Treated Copper Foil For Wireless Charging
Brand: JIMA
Price: 15 USD

Brand Name : JIMA

Model Number : EDCULP

Certification : SGS, ISO,Reach, RoHS

Place of Origin : china

MOQ : 50kg

Price : usd 15-20 /kg

Supply Ability : 1000 Ton per month

Delivery Time : 7-20days

Packaging Details : wooden carton

Name : Low Profile Reverse Treated Copper Foil For Wireless charging

Thickness : 12um, 18um, 35um, 50um, 70um

Feature : Reverse Treated Copper Foil

application : High Frequency , Multilayer Board, EMI

color : black or Red

Sample : can be supply

Contact Now

Low Profile Reverse Treated Copper Foil 18um 12um For Wireless Charging

Feature

1. Reverse Treated Copper Foil

2. Low profile

3. Arsenic free,gree

4. Excellent etchability

5. the treated foil is pink or Black

6. Shiny side treated

7. Low profile for FCCL

Application

1. 2L FCCL

2. Wireless Charging

3. EMI

Size :

Thickness:12um,18um,35um,50um 70um

Width :200-1340mm,can be cutting as request

Typical properties of Reverse Treated Copper Foil

Classification	Unit	Requirement					Test Method
Nominal thickness	/	12um	1/2 OZ(18um)	1 OZ(35um)	50UM	70UM	IPC-4562A
Area Weight	g/㎡	107±4	153±5	285±10	435±1	585±20	IPC-TM-650 2.2.12.2

Purity	％	≥99.8					IPC-TM-650 2.3.15

Roughness	Shiny side(Ra) um	≤3.0	≤3.0	≤3.0	≤8.0	≤10	IPC-TM-650 2.3.17

	Matte side(Rz) um	≤3.0	≤4.0	≤6.0		≤10
Tensile Strength	R.T.(23℃)	≥207	≥207	≥276	≥276	≥276	IPC-TM-650. 2.4.18

H.T.(180℃)	Mpa	≥103≥138
Elongation	R.T.(23℃)	≥4	≥4	≥8	≥10	≥12	IPC-TM-650. 2.3.18

H.T.(180℃)	％	≥4	≥4	≥6	≥8	≥8
Peel Strength(FR-4)	N/mm	0.7	≥0.8	≥1.0	≥1.2	≥1.3	IPC-TM-650 2.4.8

	Ibs/in	≥4.0	≥4.6	≥5.7	≥6.9	≥7.4
Pinholes&porosity	Number	No					IPC-TM-650 2.1.2

Anti-oxidization	R.T.(23℃)	180
H.T.(200℃)	60 Minutes	40

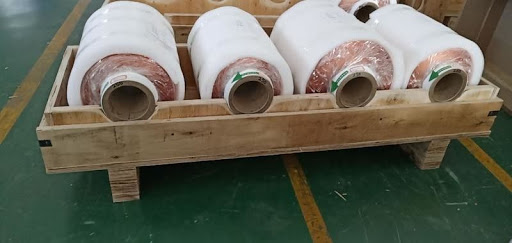

Packing: Wooden box

Insulated Low Profile 18um Reverse Treated Copper Foil For Wireless Charging

FAQ

Q: Do you provide samples?

A: Yes, we do.

Q: Can you provide finished product processing service?

A: Yes, we can prodive the finished product after die-cutting.

Q: What is the leadtime for mass production?

A: 7-20 days.

Product Tags:

Wireless Charging reverse treated copper foil

18um reverse treated copper foil

18um insulated copper foil

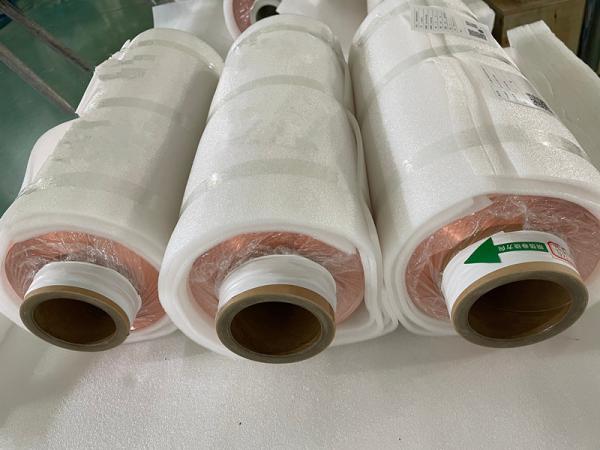

Insulated Low Profile 18um Reverse Treated Copper Foil For Wireless Charging Images
